fabrics

CHUKOH FLO™ Fabric is a material made by compounding industrial cloth such as glass cloth or aramid cloth with fluororesin or silicone resin.
We further process these materials and deliver products to a wide range of fields, including chemical, mechanical, electrical, communications and construction.

Main material composition

It is a fluoroplastic-like composite material made by impregnating industrial cloth such as glass cloth or aramid cloth with fluororesin and then baking it.
There are a wide variety of standards available, including the amount of fluoroplastic impregnation and the thickness of the cloth used.

● fluoroplastic fabric

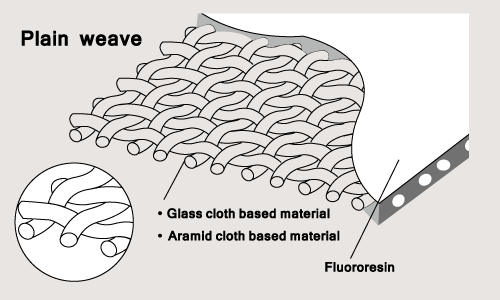

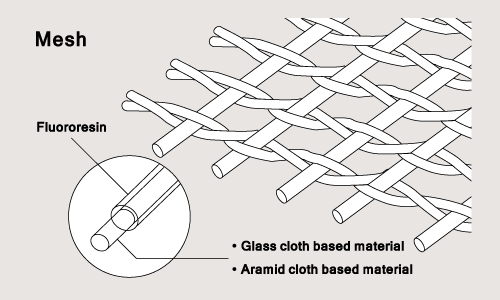

fluoroplastic plain weave construction fluoroplastic mesh construction

●Silicone Fabric

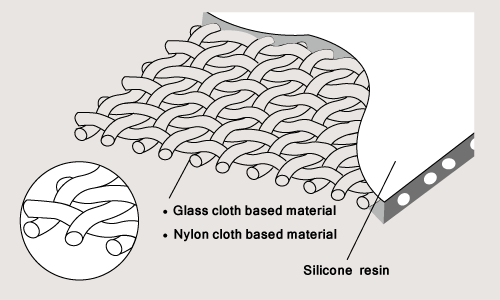

Silicone Fabric Composition

Comparison table by product series

	heat resistance	Low temperature resistance	Tensile strength	Tear strength	Water vapor resistance	Bending resistance	Peelability
FGN-500 Series	◎	◎	◎	○	×	△	○
FAF-410 Series	○	○	○	○	◎	○	△
FGF-300 Series	◎	◎	◎	○	×	△	○
FGF-400 Series	◎	◎	◎	○	×	△	○
FGF-500 Series	◎	◎	◎	○	×	△	○
FGF-410 Series	◎	◎	△	△	×	△	△
FGB-500 Series	◎	◎	◎	○	×	△	○
FAF-500FKF-500	○	○	◎	◎	◎	○	○
FNP-400	○	○	○	○	◎	◎	○
HGF-500	◎	◎	◎	○	×	△	◎

About part number display

Fabric product number

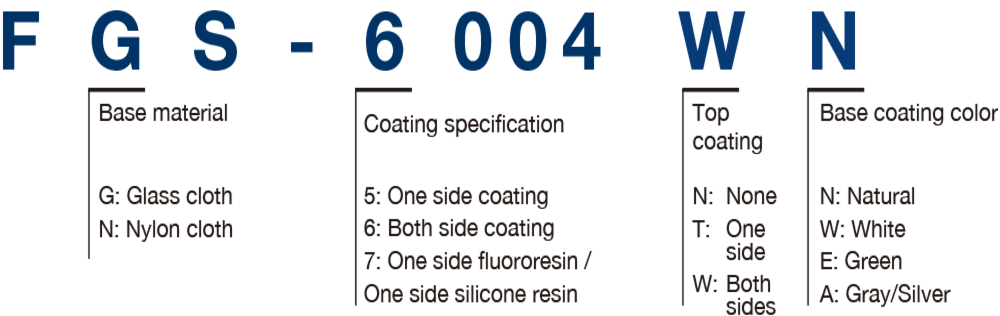

Silicone Fabric Product Number

C-SKIN

This synthetic leather is made of polyester fiber cloth and solvent-free silicone resin. Because it is made of silicone, it is stain-resistant, water-repellent, and Weatherability.

FGF-300 Series

Compared to the standard grade, this type has less fluoroplastic applied and has an uneven glass cloth.

ROHS Directive

FGF-400 Series

It is a composite material made of fluoroplastic coated with fluororesin.

ROHS Directive

FGF-500 series (high impregnation grade)

Compared to the standard grade, this type has a larger amount of fluoroplastic applied and surface smoothness.

ROHS Directive

FGB-500/FGC-500 series (antistatic grade)

This type contains conductive filler and provides static elimination effect.

ROHS Directive

FGF-410 series (mesh)

This is a highly air permeability type made of fluoroplastic-like glass cloth coated with fluororesin.

ROHS Directive

HGF-500 series (Super Fabric)

Although it is a highly impregnated grade, it has an uneven surface and is excellent in peelability, penetration resistance and Lowest friction.

ROHS Directive

MS Fabric

A special resin layer is formed on the surface, providing a better release effect than conventional types.

ROHS Directive

FAF-500/FKF-500 series

This type has excellent mechanical strength and vapor resistance.

ROHS Directive

FGY-500-10 Blue

This is a fluoroplastic fabric that has been colored blue. Because it is colored, it is easy to distinguish from regular fluoroplastic fabric.

ROHS Directive

FAF-410 series (mesh)

This is a mesh type that is high strength and resistant to vapor resistance.

ROHS Directive

Dual Fabric

This is a functional composite material made by coating glass cloth with fluoroplastic on the front side and silicone resin on the back side. It combines the grip function of silicone resin with the release and slip properties of fluoroplastic.

ROHS Directive
