C-Porous™ PTFE porous products
PTFE Porous Tube TEF-100
- C-Porous™ PTFE porous products
- ROHS Directive
overview
C-Porous™ PTFE porous tube (ePTFE) is a product made by making PTFE porous and forming it into a tube shape.
Applications
・Oxygen sensor
・ECU and headlight gas vents
・Cable protection
Features
●It is both air permeability and water repellent performance repellent.
●It is Weatherability, chemical resistance, lowest friction, flexibility, and heat insulating characteristics.
●The fine pores provide air permeability and moisture permeability while also providing waterproof and water-repellent properties.
●It is also possible to make it multi-lumen.

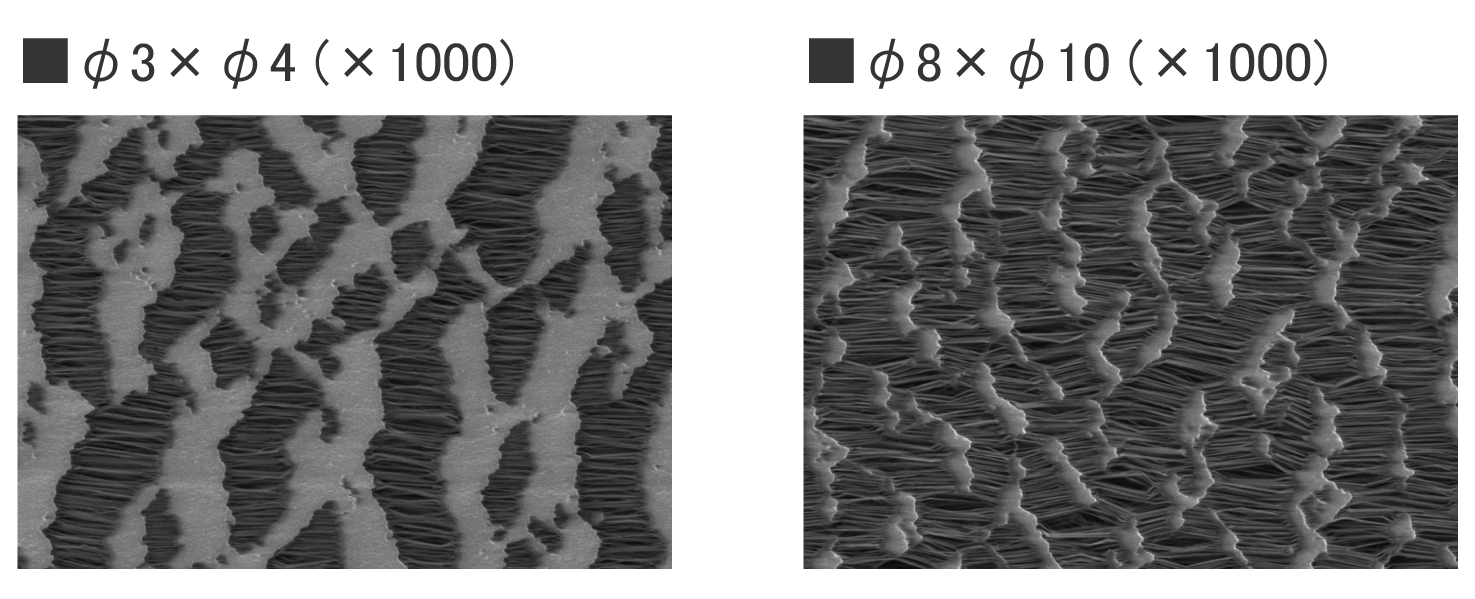

Enlarged photo
Dimensions
| Product code | Inner diameter x outer diameter (mm) | Length (m) | Porosity (%) | Air permeability (sec) | Water resistance (kPa) |
|---|---|---|---|---|---|
| TEF-100 | 1×2 | 10 | 50 | 80 | 80 |
| 2×3 | 10 | 50 | 70 | 80 | |
| 3×4 | 10 | 50 | 120 | 90 | |
| 8×10 | 10 | 70 | – | 90 | |
| 10×12 | 10 | 70 | – | 80 |
*The values in this table are measured values and not standard values.
*Air permeability is measured using an Oken air permeability tester that complies with JISP8117.
