Adhesive tape (Chukoh tape)

Radiation heat dissipation sheet PAL-350A

  • Adhesive tape (Chukoh tape)
  • Aluminum film material

overview

This tape is made of aluminum film with high thermal conductivity coated with heat-dissipating paint with high emissivity. It converts heat into infrared rays and dissipates it.

Applications

・Heat dissipation for heat-generating components (IC chips, diodes) and housings
・Electromagnetic wave shielding

Features

By mixing fluoroplastic, it has Weatherability.
●By sticking it directly to a heating element, it can provide a heat diffusion effect through radiant heat dissipation.
●Since the total thickness is thin at approximately 110 μm, it can be used in places where space is limited or where lightweight is required.
●At high frequencies (@1GHz to 6GHz), there is an attenuation effect of approximately 50dB.
●It is also possible to punch out specified shapes.

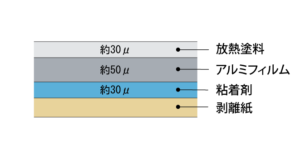

structure

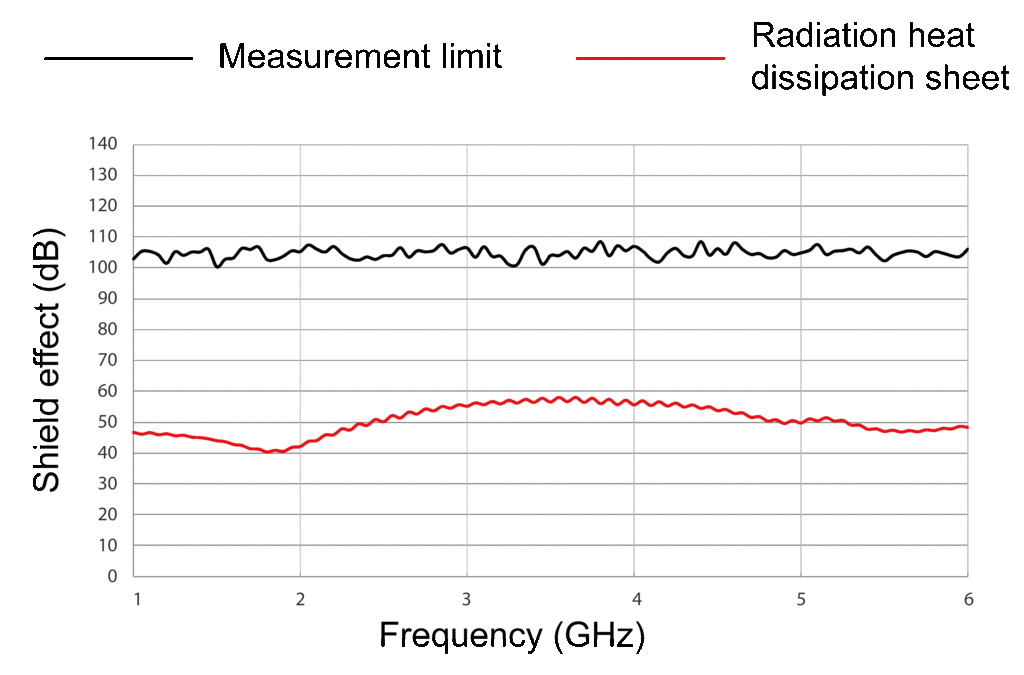

Electromagnetic wave shielding effect (1GHz to 6GHz)

Since the base material is aluminum film, it provides a certain level of electromagnetic wave shielding effect.



*Measured using the KEC method
*The above values are measured values and not standard values.

Heat dissipation effect

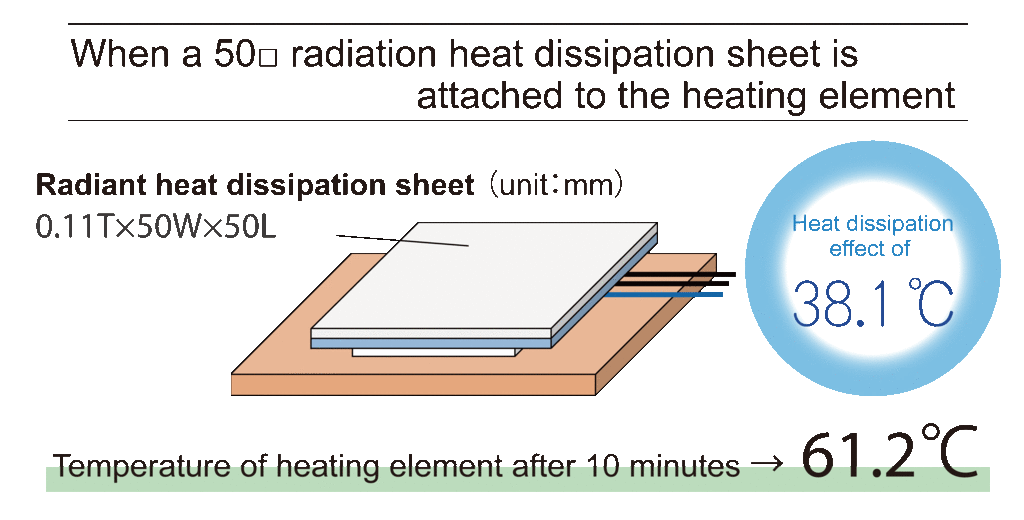

[1] When a 50mm x 50mm radiation heat dissipation sheet PAL-350A was applied, the heat dissipation effect was approximately 38°C.

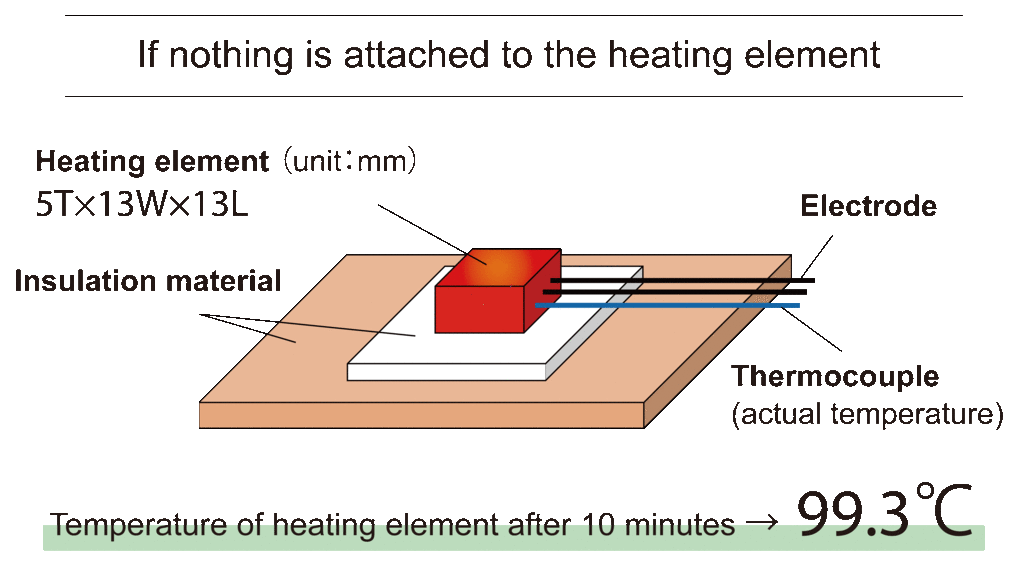

Test method: Treat the heating element as an IC chip and measure the temperature change of the heating element after 10 minutes





Heat dissipation effect

[2] The larger the size of the PAL350A radiation heat dissipation sheet used, the greater the heat dissipation effect.



*The above values are measured values and not standard values.

Heat dissipation effect

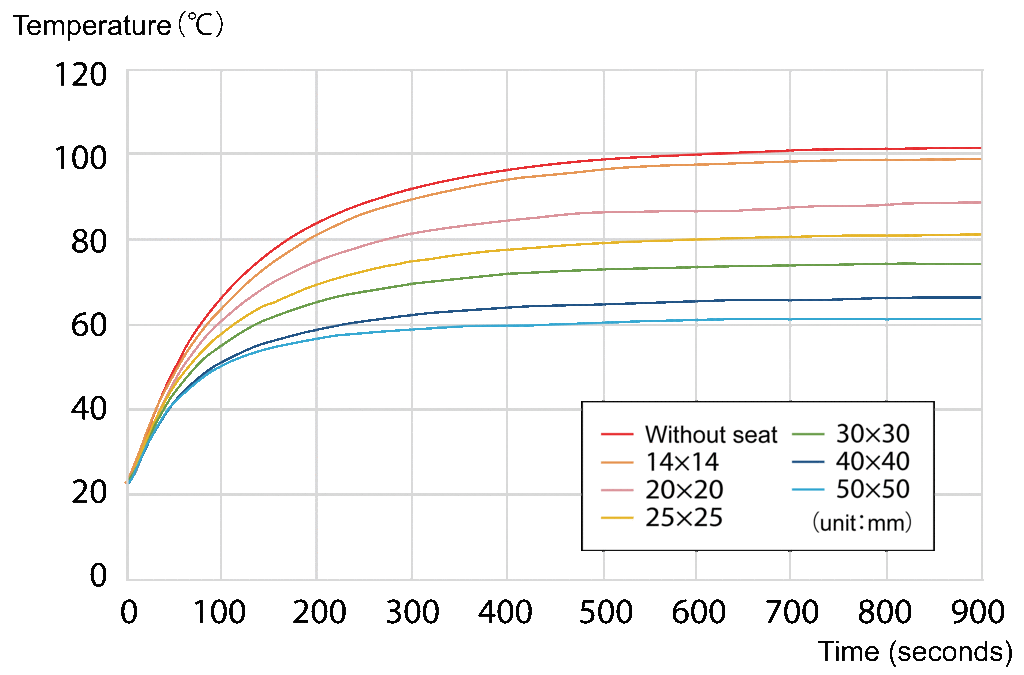

[3] The temperature of the heating element will change depending on the dimensions of the radiant heat dissipation sheet PAL-350A.

Test method: Measure the dimensions of the radiation heat dissipation sheet PAL-350A and the temperature of the heating element after 10 minutes



Dimensions of radiation heat dissipation sheet PAL-350A (mm) Heating element temperature (℃)
No seat 99.3(-)
14×14 98.2(-1.1)
20×20 86.4(-12.9)
25×25 80.0(-19.3)
30×30 73.4(-25.9)
40×40 65.4(-33.9)
50×50 61.2(-38.1)

*The above values are measured values and not standard values.

Distributor



Thickness (mm) Standard width (mm) Length (m)
0.11 480 1~45

Product performance



Test items PAL-350A
Emissivity (ε) 0.91
Maximum service temperature (℃) 150
