Adhesive tape (Chukoh tape)
ACH-6100
- Adhesive tape (Chukoh tape)
- Silicone Resin Substrate
- ROHS Directive
overview

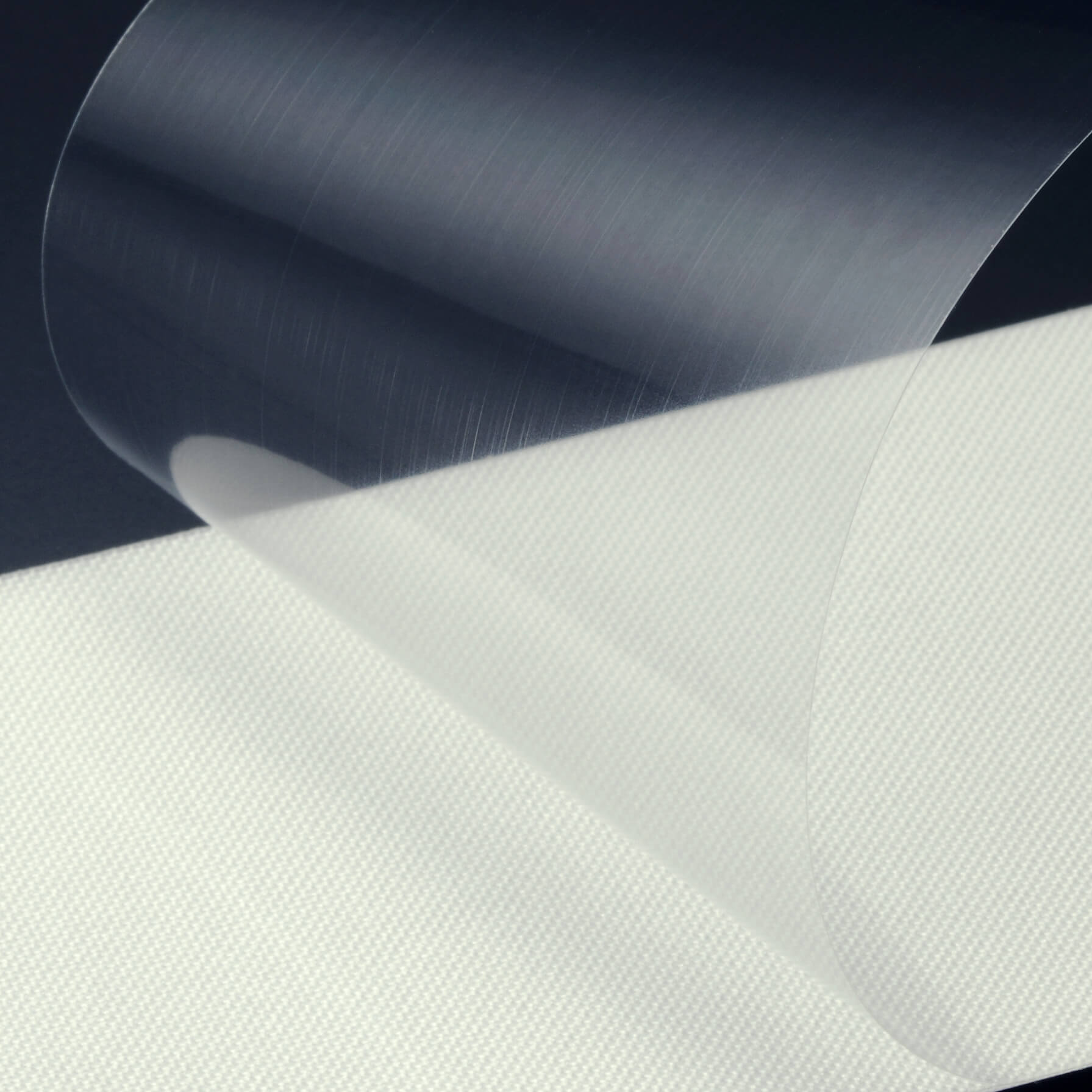

This adhesive tape is made of glass cloth coated with silicone resin.
It has excellent grip, releasing ability and heat resistance. Comes with a transparent PET separator.
Applications
- Providing traction force to feed rollers in papermaking, weaving, and printing processes
・Prevention of adhesion during the manufacturing process of films, nonwoven fabrics, etc.
・Adhesive and adhesive coating and slit processing lines
- Applications where peelability and abrasion resistance are extremely important
Maximum service temperature
+200°C
structure
How to apply
If you make a small incision on the surface of the transparent PET separator with a utility knife, you will be able to peel it off cleanly.
Features
●This tape has good grip and is non-slip.
●The surface is made of silicone resin, so it does not stick easily and has an anti-adhesion effect.
●Excellent heat resistance, chemical resistance, and Insulation.
●Comes with a separator for easy application.
● Comply with Food Sanitation Act Amendment (enforced from June 1, 2020) in Japan as food apparatus, containers and packaging.
Dimensions
| Nominal thickness (mm) | Width (mm) | Maximum width (mm) | Length (m) |
|---|---|---|---|
| Standard products | |||
| 0.28 | 25, 50 | 300 | 25 |
*We can also manufacture widths other than those listed above, as long as they are within the maximum width. Please contact us for details.
Characteristics table
| Product code | Nominal thickness (mm) |
Tensile strength | adhesion 180° peeling (N/25mm) |
Breakdown Voltage (kV) |
Maximum service temperature (°C) |
|---|---|---|---|---|---|
| ACH-6100 | 0.28 | 790 | 3 | 8 | 200 |
*The values in the table above are measured values and not standard values.
