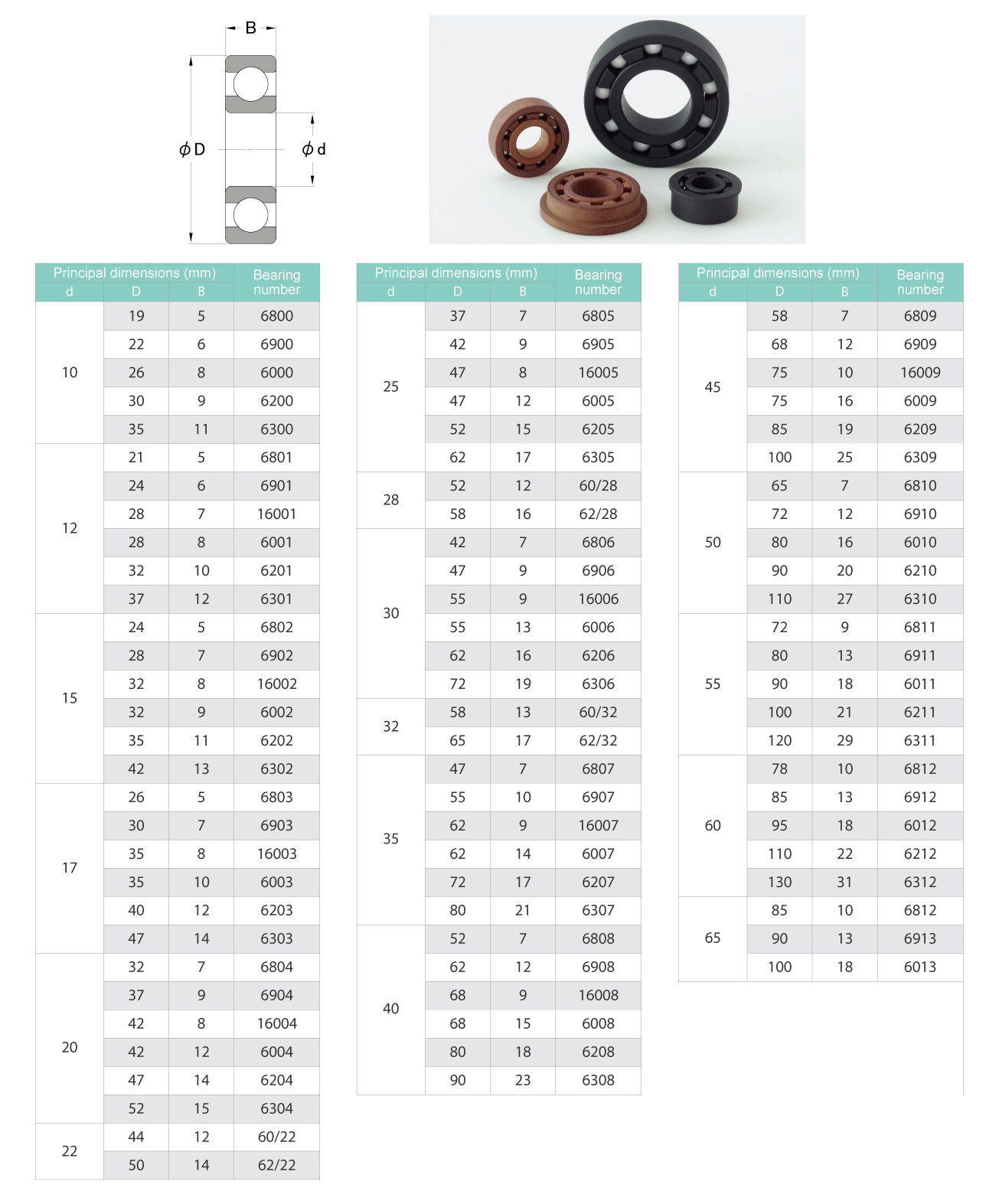

Plastic Ball Bearings

These plastic ball bearings can be used in special environments such as underwater, in chemicals, in strong magnetic fields, and in electrical conduction, eliminating problems that occur with metal bearings, such as rust, corrosion, oil splashes, and failures caused by magnetism or electricity.

・Various manufacturing equipment in clean rooms
・Plating equipment
Surface treatment equipment
・Cleaning equipment using chemicals
・Precision equipment such as testing equipment, analytical equipment, and medical equipment
・Spraying device
Diffusion device
・Food and pharmaceutical manufacturing equipment, etc.

No grease oils are used.
- It will not rust or deteriorate even when exposed to water, seawater, or chemicals.
-Can be used over a wide range of temperatures, from low to high.
- Being a non-magnetic material, it prevents malfunction of measuring instruments that use magnetism.
-High Insulation ensure insulation between the housing and shaft.
-Contributes to weight reduction.
- Shape and material can be selected according to the conditions of use.

Inner and outer rings, cage
PTFE, PCTFE, PEEK, PPS, UHMWPE, PP, phenol, carbon, etc.

● Ball Material
Ceramics (alumina, zirconia, silicon nitride, silicon carbide)
PP, PE, PVDF, PTFE, PEEK, soda glass, SUS, etc.
