PTFE Porous Film SEF-600
- C-Porous™ PTFE porous products
- ROHS Directive
overview
This product is made by making PTFE porous and forming it into a film. It can also be punched into various shapes. Compared to the porous film SEF-010 series, it has superior air permeability and water resistance. It is available in a wide range of widths while maintaining the stiffness required for easy handling.
Applications
・Wire covering
・Filtration filter
・Insulation material
- Thermal insulation material
・Oxygen sensor
・ECU and headlight gas vents
・Cable protection
Features
●It is both air permeability and water-repellent.
●It is Weatherability, chemical resistance, lowest friction, flexibility, and heat insulating characteristics.
●The fine pores provide air permeability and moisture permeability while also providing waterproof and water-repellent properties.
●Sealing and punching in various shapes is also possible.
●We can also manufacture strong non-woven fabric and PET mesh types. Please contact us for details.
● Comply with Food Sanitation Act Amendment (enforced from June 1, 2020) in Japan as food apparatus, containers and packaging.

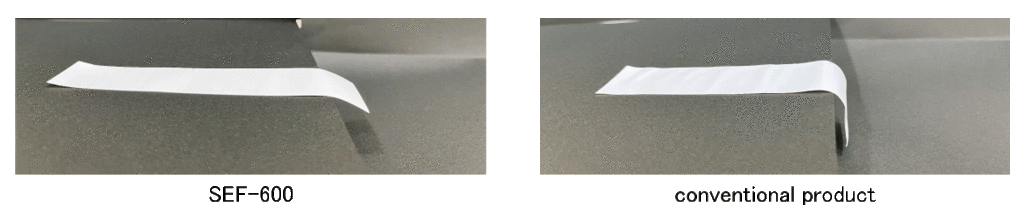

Bending resistance
Dimensions
| Product code | Thickness (mm) | Maximum width (mm) | Length (m) |
|---|---|---|---|
| SEF-600 | 0.12 | 250 | 10~ |
*For sizes other than those listed above, please contact us separately.
Characteristics table
| Product code | Air permeability (sec) | Water resistance (kPa) |
|---|---|---|
| SEF-600 | 10 | 170 |
*The values in the table above are measured values and not standard values.
*Air permeability is the value measured using a Gurley-type air permeability tester conforming to JISP8117.
