Adhesive tape (Chukoh tape)
AGB-207-6-1
- Adhesive tape (Chukoh tape)
- Fluororesin / Glass cloth based material
- ROHS Directive
overview
This product is made by applying an acrylic adhesive to air permeability fluoroplastic-impregnated glass cloth.
It comes with a separator so it can be easily cut.
*The black part is the product and the reddish-brown part is the separator.
Applications
Cushioning material for electronic parts, device manufacturing processes, and other plate-shaped parts suction and fixing applications
Maximum operating temperature
+80°C

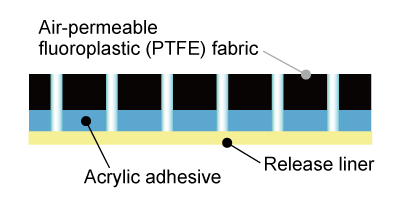

structure
Features
●It is also air permeability while retaining the properties of fluoroplastic.
●It also has excellent mechanical strength, dimensional stability, and Lowest friction.
●Ideal for use as a cushioning material in suction fixation applications.
Dimensions
| Nominal thickness (mm) | Width (mm) | Maximum width (mm) | Length (m) |
|---|---|---|---|
| Standard products | |||
| 0.11 | 480, 1000 | 1000 | 1～ |
*We can also manufacture slits for widths other than those listed above, as long as they are within the maximum width. Please contact us separately.
Characteristics table
| Product code | Nominal thickness (mm) |
Tensile strength (N/25mm) |
Ventilation measure (cm³/cm²・s) |
Adhesive force 180° peeling (N/25mm) |
coefficient of dynamic friction (-) |
Maximum operating temperature (°C) |
|---|---|---|---|---|---|---|
| AGB-207-6-1 | 0.11 | 450 | 15 | 1.2 | 0.087 | 80 |
*The values in the table above are measured values and are not guaranteed values.
