Adhesive tape (Chukoh tape)

CHUKOH FLO™ Adhesive tapes can easily give the characteristics of the base material films by sticking them onto the object. Since our adhesive tapes are manufactured by a variety of functional engineering plastics such as fluoroplastic, it can be expected further utilizing, even at where the tapes manufactured by general-purpose plastics were unsuitable.

Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Chukoh Chemical industries, LTD.

Main Features

- The surface of fluoroplastic adhesive tape is non-stick characteristics, lowest friction, and resistant to chemical resistance.
-Can be used over a wide temperature range.
-Excellent electric insulation.
・We also manufacture adhesive tapes with silicone and polyimide base materials.

Features video

Comparison table by product series

series	AGF Series	AGB Series	ASF Series	API Series	AUE Series
Base material	fluoroplastic impregnation Glass cloth	Carbon included fluoroplastic impregnation Glass cloth	fluoroplastic film	Polyimide film	Ultra-high molecular weight polyethylene film
heat resistance	◎	○	○	◎	△
Low temperature resistance	◎	◎	◎	◎	△
flexibility	△	△	◎	△	△
Antistatic treatment	–	◎	–	–	–
Smoothness	○	○	◎	◎	◎
non-stick characteristics	◎	◎	◎	○	○
lowest friction	◎	◎	◎	○	○
Abrasion resistance	○	○	○	◎	◎

Main uses

Lining of chutes and hoppers/covering of drying rolls for nonwoven fabrics and paper manufacturing/covering of heat seal pressure bonding parts/insulating spacers/insulating covering of wiring parts/others

Quick reference chart for fluoroplastic adhesive tape types

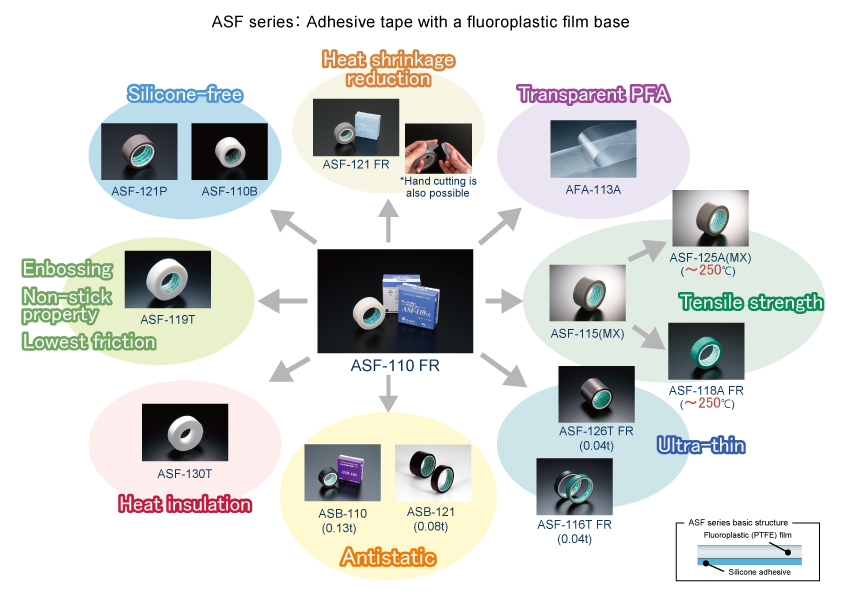

A quick look at Chukoh Chemical Industries' fluoroplastic adhesive tape ASF series

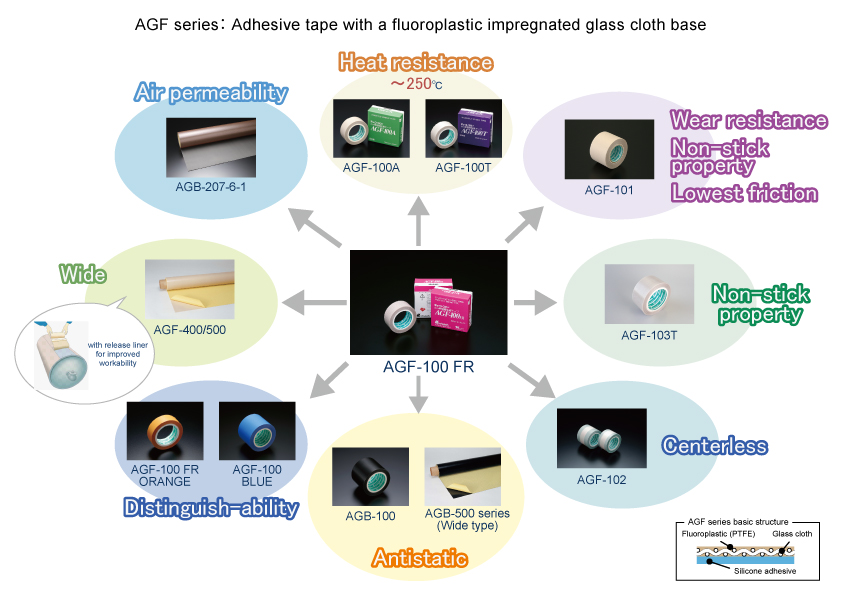

A quick look at Chukoh Chemical Industries' AGF series of fluoroplastic adhesive tapes

Radiation heat dissipation sheet PAL-350A

This tape is made of aluminum film with high thermal conductivity coated with heat-dissipating paint with high emissivity. It converts heat into infrared rays and dissipates it.

ASF-110FR

Manufactured by fluoroplastic (PTFE) film. It is heat resistant, non-adhesive, electric insulation and has elongation. The surface is milky white with lowest friction.

UL Standard
ROHS Directive

AGF-100FR

Manufactured by fluoroplastic (made with Teflon™ PTFE) impregnated glass fabric. It has excellent heat resistance, non-adhesiveness, electric insulation and dimensional stability.

UL Standard
ROHS Directive

AGF-100A

Manufactured by fluoroplastic (made with Teflon™ PTFE) impregnated glass fabric. With a heat resistance temperature of 250°C, it is suitable for use in even hotter environments than ordinary Teflon tape.

ROHS Directive

AGF-100T

Manufactured by fluoroplastic (made with Teflon™ PTFE) impregnated glass fabric. It has particularly excellent hot adhesion, making it ideal for heat sealing at high temperatures.

ROHS Directive

AGF-100 BLUE

This adhesive tape has a blue-colored fluoroplastic-impregnated glass cloth base. It is suitable for improving visibility.

ROHS Directive

AGF-100FR ORANGE

This adhesive tape has an orange colored fluoroplastic-impregnated glass cloth base material. It is ideal for identifying high-voltage wiring in electric vehicles (EVs).

UL Standard
ROHS Directive

AGF-101

Manufactured by special fluoroplastic (PTFE) impregnated glass fabric. It has excellent abrasion resistance, lowest friction, and non-stick characteristics.

ROHS Directive

AGF-102

AGF-100FR is a tape with no adhesive in the center, developed for use with heat sealing machines.

ROHS Directive

AGF-103T

fluoroplastic-impregnated glass cloth adhesive tape with better releasing ability than AGF-100FR.

ROHS Directive

AGF-400/500 series

The base material is fluoroplastic (PTFE)-impregnated glass cloth, and comes with release paper up to a maximum width of 1000 mm.

ROHS Directive

AGB-100

This is the antistatic type of AGF-100FR.

ROHS Directive

AGB-207-6-1

This is a air permeability fluoroplastic (PTFE) impregnated glass cloth adhesive tape.

ROHS Directive

AGB-500

This is the antistatic type of AGF-500.

ROHS Directive

ASF-121FR

Manufactured by fluoroplastic (PTFE) film. It has a high surface smoothness and is less susceptible to shrinkage due to heat compared to ASF-110FR.

UL Standard
ROHS Directive

ASF-121 (TeCut™)

This adhesive tape is made by adding hand-tear processing to the ASF-121FR adhesive tape, which has fluoroplastic (PTFE) film base material.It can be cut by hand without using a blade.

ROHS Directive

ASF-119T

This adhesive tape has a fluororesin (PTFE) fluoroplastic with an uneven surface. The uneven surface improves lowest friction of ASF-110FR by 30%, and also improves releasing ability.

ROHS Directive

ASB-110

The base material is fluoroplastic. It has antistatic properties.

ROHS Directive

ASB-121

The base material is a fluoroplastic film with a silicone adhesive applied to one side. As an antistatic product, it is suitable for use in processes where the effects of static electricity are undesirable.

ROHS Directive

ASF-110B

This is a silicone-free fluoroplastic adhesive tape that uses an acrylic adhesive.

ROHS Directive

ASF-121P

This is a silicone-free fluoroplastic adhesive tape that uses an acrylic adhesive with excellent heat resistance.

ROHS Directive

ASF-121 BLUE

This adhesive tape has a blue-colored fluoroplastic (PTFE) film as the base material. It is suitable for improving visibility.

ROHS Directive

ASF-115(MX)

This adhesive tape has a high-strength, low-elongation fluoroplastic (PTFE) film as the base material. It has higher tensile strength and is less likely to stretch than ASF-110 FR.

ROHS Directive

ASF-125A(MX)

This adhesive tape uses a high-strength, low-elongation fluoroplastic (PTFE) film as a base material, with a silicone adhesive applied to one side. This product has stronger stiffness than ASF-115(MX), and also has improved tensile strength and heat resistance.

ROHS Directive

ASF-118AFR

This is fluoroplastic with even higher tensile strength than the high-strength, low-elongation fluoroplastic (PTFE) adhesive tape ASF-115(MX).

UL Standard
ROHS Directive

ASF-116T FR

This adhesive tape has an extremely thin fluoroplastic (PTFE) film as the base material. It is thin and does not stretch easily, with a thickness of 0.04 mm.

UL Standard
ROHS Directive

ASF-130T

This adhesive fluoroplastic has a porous fluororesin film (ePTFE) as the base material. In addition to the properties of fluoroplastic, it also has heat insulation, waterproofing, and water repellency.

ROHS Directive

AFA-113A

This is a highly transparent fluoroplastic adhesive tape that uses PFA film as a base material and has a light transmittance of 94%.

ROHS Directive

API-114AFR (Polyimide tape)

This heat resistance insulating tape uses polyimide film as a base material and has excellent heat resistance and Insulation.

UL Standard
ROHS Directive

API-114A (ST)

This heat resistance insulating tape has a separator and is based on polyimide film. It has excellent heat resistance and Insulation.

ROHS Directive

API-117G

This is a low heat resistance insulating tape with a polyimide film base material. As it leaves little adhesive residue, it is ideal for masking in high-temperature environments.

ROHS Directive

API-214A (Polyimide tape)

This double-sided tape is made of polyimide film and is ideal for temporary fixing under high temperatures.

ROHS Directive

API-214AE (Polyimide tape)

This is a double-sided adhesive tape with a polyimide film base and light adhesion on one side.

ROHS Directive

ACH-6000

This adhesive tape has a textured silicone surface and provides excellent grip, releasing ability, and heat resistance.

ROHS Directive

ACH-6100

This adhesive tape has a glass cloth base material and a silicone resin coating on the surface. It is ideal for locations where grip is required in high temperature environments.

ROHS Directive

AUE-112B (Ultra-high molecular weight polyethylene tape)

This tape has excellent lowest friction is made from ultra-high molecular weight polyethylene (UHMW) film as a base material.

ROHS Directive

AUB-112B (Ultra-high molecular weight polyethylene tape)

This tape has excellent lowest friction and antistatic properties, and is made with an ultra-high molecular weight polyethylene (UHMW) film base containing conductive carbon.

ROHS Directive

ACH-5201A

This is an extremely thin adhesive tape with a thickness of 0.055 mm, made of a polyester base material coated with a silicone adhesive.

ROHS Directive

ACH-5001FR

This is an adhesive tape with a high-strength glass cloth base.

UL Standard
ROHS Directive
